Solar Bore Pump System Design for NZ Properties

A bore that delivers well on a bright summer afternoon can still leave a trough, header tank or house supply short in winter. A solar bore pump system must be designed around the water demand you cannot afford to miss, not simply the pump’s maximum flow rate on its specification sheet.

For rural properties, farms and remote sites, solar pumping can reduce dependence on mains power, generators and long cable runs. It is particularly useful where water is needed away from buildings or where the cost of bringing power to a bore is disproportionate. The result is not automatically a lower-risk water supply, however. Bore performance, solar resource, lift, storage, controls and water quality all need to work together.

Start with the water duty, not the solar panels

The first design question is straightforward: how much water is required each day, and when is it required? Domestic demand, stock water, irrigation, washdown and process use have very different daily profiles. A household may use relatively steady volumes with morning and evening peaks. Stock demand often rises in hot, dry conditions, which may align well with solar generation but can also coincide with higher bore drawdown.

Daily volume alone is not enough. The pump must also overcome the total dynamic head. This includes the standing water level in the bore, the pumping water level after drawdown, the vertical lift to the tank, pressure requirements and friction losses through pipework, fittings, filters and valves. A system pumping to a tank on a hill can need considerably more energy than a similar bore feeding a tank beside the wellhead.

A useful design brief records the required litres per day, peak daily demand, bore depth, expected pumping level, delivery elevation, pipe size and route, preferred storage volume, and whether supply is for drinking water, stock, irrigation or a process. These details allow the pump curve and solar array to be selected for the actual duty point rather than a guess.

Why storage is usually the best battery

For most solar bore pumping applications, water storage is simpler and more cost-effective than electrical battery storage. The solar array drives the pump during available sunlight, and water is stored in a tank for use overnight, during cloudy periods or when demand peaks.

This approach reduces electrical complexity and avoids the replacement cycle associated with batteries. It also gives the property a visible reserve of water. The trade-off is that the tank, foundations, pipework and float controls must be properly sized and installed. Storage is not an afterthought - it is central to supply resilience.

The right reserve depends on the consequence of running out. A small domestic system with an alternative mains connection has a different requirement from an isolated farm supplying livestock or a facility where water interruptions affect operations. Some sites need several days of autonomy; others can operate reliably with less storage because the bore yield, solar resource and backup supply are strong.

Selecting a pump for a solar bore pump system

Submersible bore pumps are commonly used because they can operate at depth and are protected from surface conditions. The correct model depends on bore diameter, water level, required flow and total dynamic head. High flow is not always desirable. Pumping faster than the bore can recharge may cause excessive drawdown, air entry, sediment disturbance or dry-run events.

The motor and controller should be matched to the solar array and expected operating conditions. Solar pump controllers can manage variable solar input, optimise pump operation and provide protection functions. Depending on the application, useful functions include dry-run protection, tank-full shut-off, low-water cut-out, restart delays, pressure control and fault indication.

A pressure tank and conventional pressure controller may suit a house supply, but direct pumping to elevated storage is often more practical for stock and remote distribution. If a system needs both reliable bore pumping and pressurised household water, separating those duties can make maintenance and fault-finding easier. The bore pump fills storage; a separate pressure pump supplies the house.

Check the bore before finalising equipment

A bore log and pump test provide far better information than depth alone. Static water level, tested yield, drawdown and recovery rate determine how much water can be sustainably extracted. Water chemistry matters too. Iron, manganese, hardness, sediment, salinity and corrosive water can all affect pump materials, filters, valves and downstream treatment.

Fine sediment is a particular concern in new, poorly developed or disturbed bores. It can shorten pump life, block filters and create problems for UV disinfection or household appliances. A pump should be positioned to avoid drawing from the bottom of the bore, with the final setting based on bore construction, water level and expected drawdown.

Design for winter output and real site conditions

Solar generation changes by season, weather and location. A design based only on peak summer output can disappoint when daylight hours shorten and the sun sits lower in the sky. Array sizing should reflect the required winter water volume, local shading, panel orientation and the acceptable level of stored reserve.

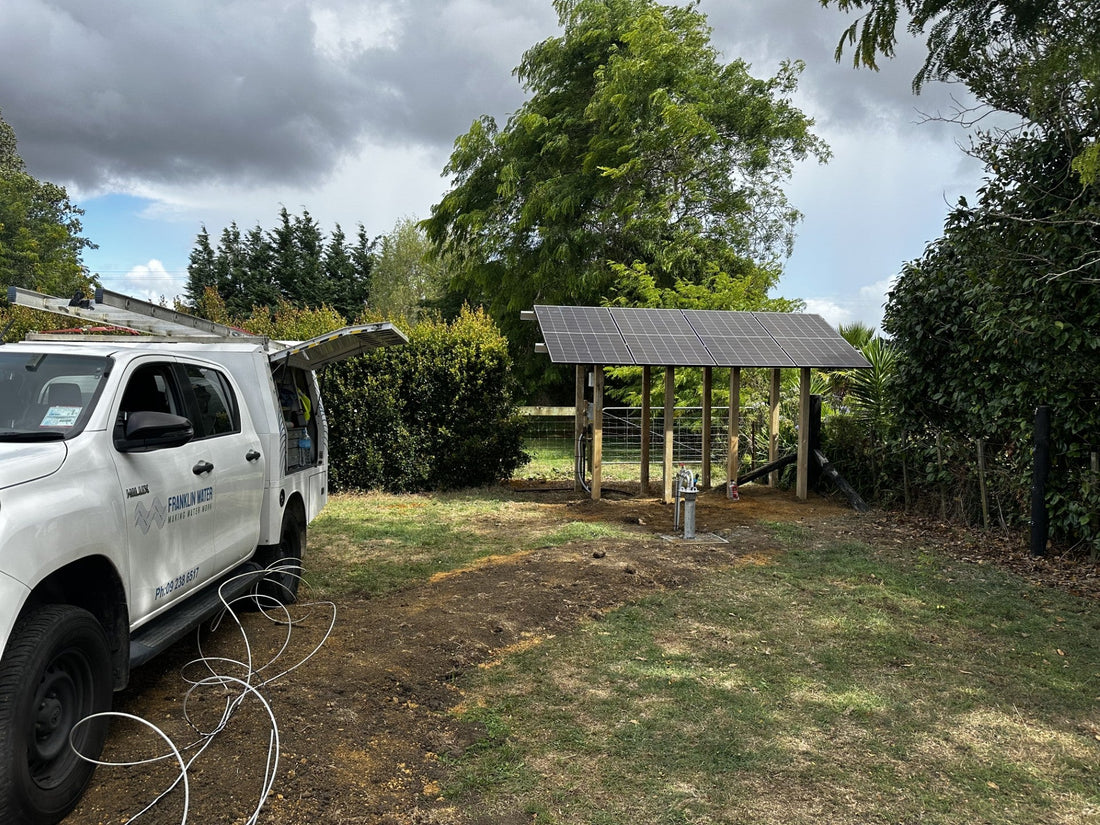

Trees, ridgelines, sheds and even a nearby water tank can shade panels at critical times of day. A site assessment should look beyond the open sky directly above the array. Panels need a secure mounting arrangement, suitable orientation and accessible cable routes that protect against stock, UV exposure and mechanical damage.

New Zealand rural installations also need practical attention to wind loading, corrosion exposure, lightning risk and access for servicing. On sites with long pipe runs, pressure surges and friction losses should be considered early. A slightly larger pipe can reduce pumping energy and improve delivery at the far end of the line, particularly where stock troughs are spread across a property.

Controls make the system dependable

A solar pumping system should stop when the storage tank is full and protect itself when the bore level falls too low. Float switches, level sensors and pressure controls need to suit the water quality and installation environment. A poorly located float switch or unprotected cable can create intermittent faults that are difficult to diagnose.

Remote monitoring is worth considering where a bore supports critical supply, a site is unattended or access is difficult. It can provide early notice of low tank level, pump faults, unusual run times or declining bore performance. Monitoring does not replace inspection, but it can reduce the time between a fault developing and someone responding to it.

Backup planning is equally important. A generator connection, mains-powered backup pump, alternative water source or stored emergency volume may be appropriate depending on the site. Solar pumping is highly reliable when designed well, but no single source should carry an unacceptable consequence without a contingency plan.

Treat bore water as a separate design decision

A pump system delivers water. It does not confirm that the water is safe or suitable for its intended use. Bore water can be clear and still contain microorganisms, dissolved metals, nitrate, hardness or other contaminants. Testing should guide treatment selection, particularly for household drinking water, food and beverage uses, community supplies and any operation with compliance obligations.

Treatment equipment must be compatible with the pump flow and pressure. For example, UV systems require appropriately filtered water and controlled flow conditions to achieve their intended disinfection performance. Iron or manganese may need removal before UV treatment, while reverse osmosis requires suitable pretreatment and a managed reject-water arrangement.

Franklin Water can assess the complete duty - source, pumping, storage, treatment and controls - so equipment selection supports the required water quality and operating outcome rather than solving one part of the system in isolation.

Installation and maintenance protect the investment

Professional installation is about more than lowering a pump into a bore. It includes safe electrical work, appropriate cable sizing, correct pipework and check valves, sanitary borehead sealing where required, secure solar mounting, controller configuration and commissioning under real operating conditions. Confirming pump flow, pressure, tank shut-off and dry-run protection at handover helps avoid preventable failures.

Ongoing checks should include tank levels, array cleanliness and shading, controller alarms, pipe leaks, trough valves and changes in pump run time. A gradual fall in flow can indicate wear, blockage, bore drawdown changes or a developing electrical issue. Acting early is generally less disruptive than waiting for a complete loss of supply.

The best solar bore pumping projects make the daily routine uneventful: water reaches storage, controls protect the equipment, and the system has enough reserve to handle the days when conditions are less than ideal. That is the standard worth designing for.
