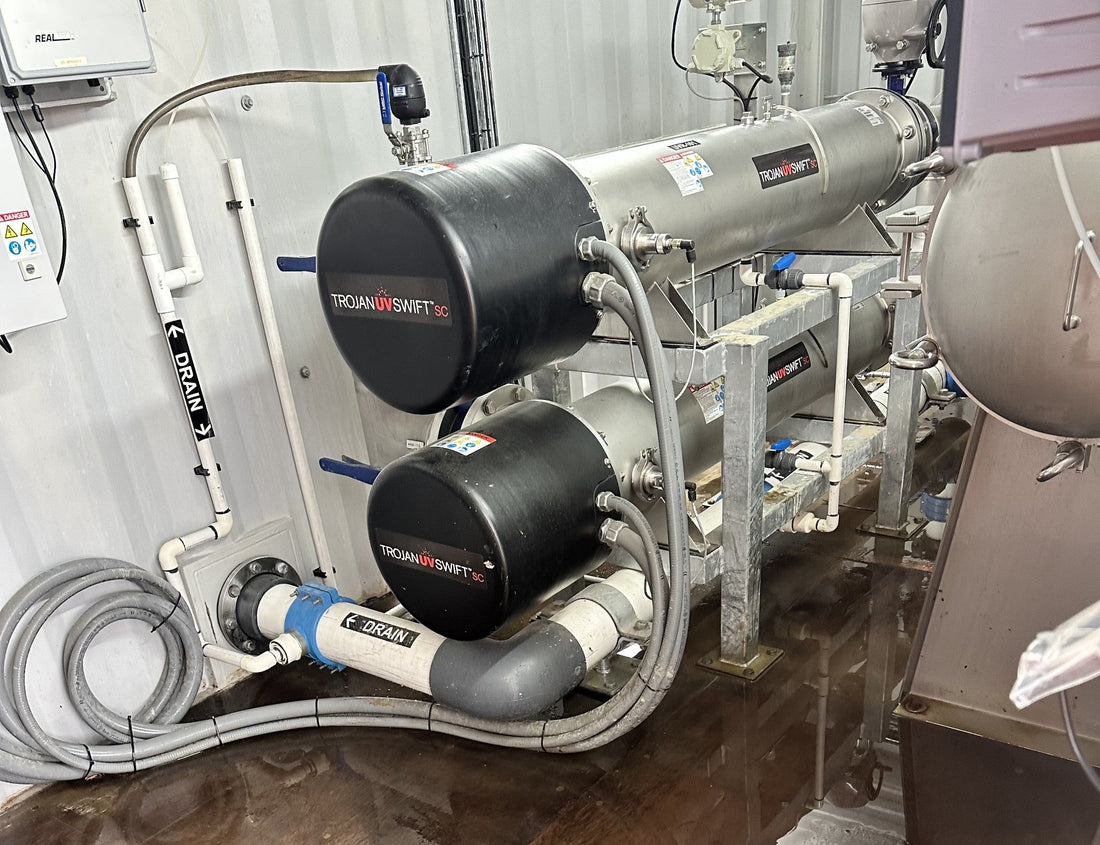

Validated UV Disinfection for Reliable Water

A UV unit can be lit, warm and apparently working while still delivering less treatment than your site requires. That distinction matters for rainwater, bore water, rural supplies and commercial systems where water quality can change after heavy rain, a pump fault or a shift in demand. Validated UV disinfection gives owners and operators a measured basis for deciding whether a UV system can provide the required level of microbial protection under defined operating conditions.

UV treatment is widely used because it disinfects without adding a residual chemical or changing the taste and odour of water. However, selecting a unit by lamp wattage, chamber size or a general flow rating alone does not establish the dose reaching microorganisms in the water. A validated system is designed and tested to show what it can achieve, provided its stated conditions are met.

What validated UV disinfection actually means

UV disinfection works by exposing microorganisms to ultraviolet light, commonly at a wavelength around 254 nanometres. The light damages their genetic material, reducing their ability to reproduce and cause infection. The treatment outcome depends on UV dose, which is a relationship between the intensity of UV light delivered and the time water spends in the reactor.

Validation is the process of demonstrating reactor performance through recognised testing methods. Rather than relying solely on a theoretical calculation, a reactor is tested across specified flows and operating conditions, often using a challenge organism or surrogate. The resulting validation identifies the dose or log reduction the system can deliver within its approved duty range.

This does not mean every installed system will automatically achieve a regulatory outcome. Validation applies only when the installation, water quality, flow rate, lamp condition and controls remain within the system's stated limits. It is a strong foundation for risk reduction, but it must be matched to the site and maintained properly.

For a household supply, validation provides greater confidence that a selected UV unit has a defined performance basis. For a food and beverage site, community supply or industrial facility, it supports treatment design, risk management and verification discussions. The required level of treatment will depend on the source water, intended use and relevant compliance obligations.

Why a nominal flow rating is not enough

Many UV products are sold with a maximum flow figure. That figure may be useful for initial selection, but it does not always explain the conditions behind it. A reactor capable of handling a high flow on clear, low-UV-absorbing water may not provide the same dose when water has lower UV transmittance or when the lamp is near the end of its service life.

UV transmittance, often called UVT, describes how effectively UV light travels through water. Clear-looking water can still contain dissolved compounds that absorb UV energy. Tannins in rainwater, organic matter in surface water and some bore-water characteristics can all reduce UVT. Suspended solids also matter because they can shield microorganisms from the light.

Flow control is equally important. If the flow through a UV reactor exceeds its validated limit, water spends less time in the chamber and the dose can fall. This can occur when a pump is upgraded, a bypass is left open, multiple taps operate at once, or process demand changes. A correctly sized system should account for realistic peak flows, not just average daily consumption.

A suitable design considers the water source, required flow, expected UVT, pressure losses, peak demand and the level of protection required. It also considers what happens when performance falls outside acceptable limits. For critical supplies, this may include alarms, UV intensity monitoring, automatic shutdown or diversion arrangements, and remote monitoring where appropriate.

Pre-treatment makes UV more dependable

UV is highly effective as a final disinfection barrier, but it is not a substitute for removing sediment, colour or excessive organic matter. Good pre-treatment allows the UV reactor to do its job consistently.

For rainwater supplies, this may involve first-flush management, tank hygiene and sediment filtration before UV treatment. Bore water may require particle filtration, iron or manganese removal, softening, pH correction or treatment for other source-specific contaminants. Surface or stored water can need a more considered treatment train, especially where turbidity rises after rain.

The right approach depends on water testing and site conditions. Installing finer filters without understanding the water can create unnecessary pressure loss and frequent cartridge changes. Conversely, undersized or poorly selected filtration can allow solids through that foul the quartz sleeve, reduce UVT and compromise the available dose.

A practical arrangement places filtration ahead of the UV reactor and provides isolation valves, pressure gauges and enough room for servicing. For larger systems, automatic filtration, duty-standby arrangements and monitoring may be justified where continuity of supply is critical.

Selecting a validated UV system for your site

The starting point is not the UV unit. It is the water and the duty it must perform. A reliable selection process begins with a current water test, particularly for bore, rainwater and changing source waters. The test results help identify issues that UV will not remove, such as sediment, metals, hardness, chemical contaminants or poor aesthetic quality.

Next, establish the required flow. A rural home may need to cover simultaneous showers, kitchen use and stock or washdown demand. A commercial facility may have short, high-demand periods that exceed its normal operating flow. Treatment equipment must be sized for the actual demand profile and any likely future changes.

Then review the reactor's validation documentation and approved operating envelope. Confirm the validated dose, maximum flow at the expected UVT, lamp type, sensor requirements and alarm functions. If the source quality varies seasonally, select equipment and pre-treatment for the poorer expected condition, or put monitoring and operational controls in place to manage that variation.

Installation quality is part of treatment performance. Pipework should prevent unintentional bypassing, protect the reactor from excessive pressure and allow maintenance without disrupting the whole site unnecessarily. Electrical supply, earthing, drain points and access for lamp and sleeve replacement also need to be planned before commissioning.

Franklin Water can assist with water assessment, equipment selection, engineered treatment design and installation where a standard off-the-shelf package is not enough. This is particularly valuable where water quality is variable, process water is involved or downtime carries a real operational cost.

Operating conditions need to be verified

A validated reactor is not a fit-and-forget appliance. It needs routine checks to keep its delivered performance aligned with the validated design.

The quartz sleeve is a common point of performance loss. It separates the lamp from the water while allowing UV light through, but mineral scale, iron, biofilm and other deposits can reduce light transmission. Automatic wipers can help in demanding applications, while manual inspection and cleaning may be suitable for smaller domestic systems. The cleaning frequency should reflect actual water conditions, not simply a calendar reminder.

UV lamps also degrade over time. A lamp may still emit visible light after its useful UV output has declined. Replace lamps according to the manufacturer's recommended service interval and use compatible parts. In critical applications, lamp status, UV intensity and reactor alarms should be checked as part of documented operating routines.

If a UV intensity sensor is installed, it should be treated as an operational indicator rather than a decorative display. Low readings can be caused by lamp ageing, sleeve fouling, water-quality changes or sensor issues. The correct response is to investigate the cause, not simply reset the alarm.

Regular water testing provides another layer of assurance, particularly after source changes, flooding, tank cleaning, major repairs or treatment modifications. For regulated or high-risk sites, verification requirements may include formal sampling plans, operational records and incident response procedures. The appropriate level of monitoring depends on the consequence of treatment failure.

When UV alone is not the answer

UV inactivates microorganisms, but it does not remove particles, dissolved salts, nitrate, PFAS, heavy metals or most chemicals. It also leaves no disinfectant residual in downstream pipework. Where water can be recontaminated after treatment, a secondary barrier or carefully managed distribution system may be needed.

For some community and commercial applications, chemical disinfection may be used alongside UV to provide residual protection. Reverse osmosis, adsorption, ion exchange or specialised media may be needed where dissolved contaminants are the concern. These are not competing technologies. They are treatment tools that should be combined according to the risk and the water quality.

The most dependable UV installation is one that has been selected around real operating conditions, not a catalogue flow figure. When validation, pre-treatment, installation and maintenance are treated as one system, UV can provide a practical and highly effective barrier for safer water.
