Pentair

Autotrol 255 Easy-iQ

Autotrol 255 Easy-iQ

Regular price $1,553.70 NZD
Regular price Sale price $1,553.70 NZD
Sale Sold out

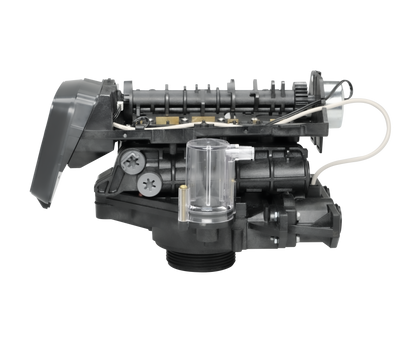

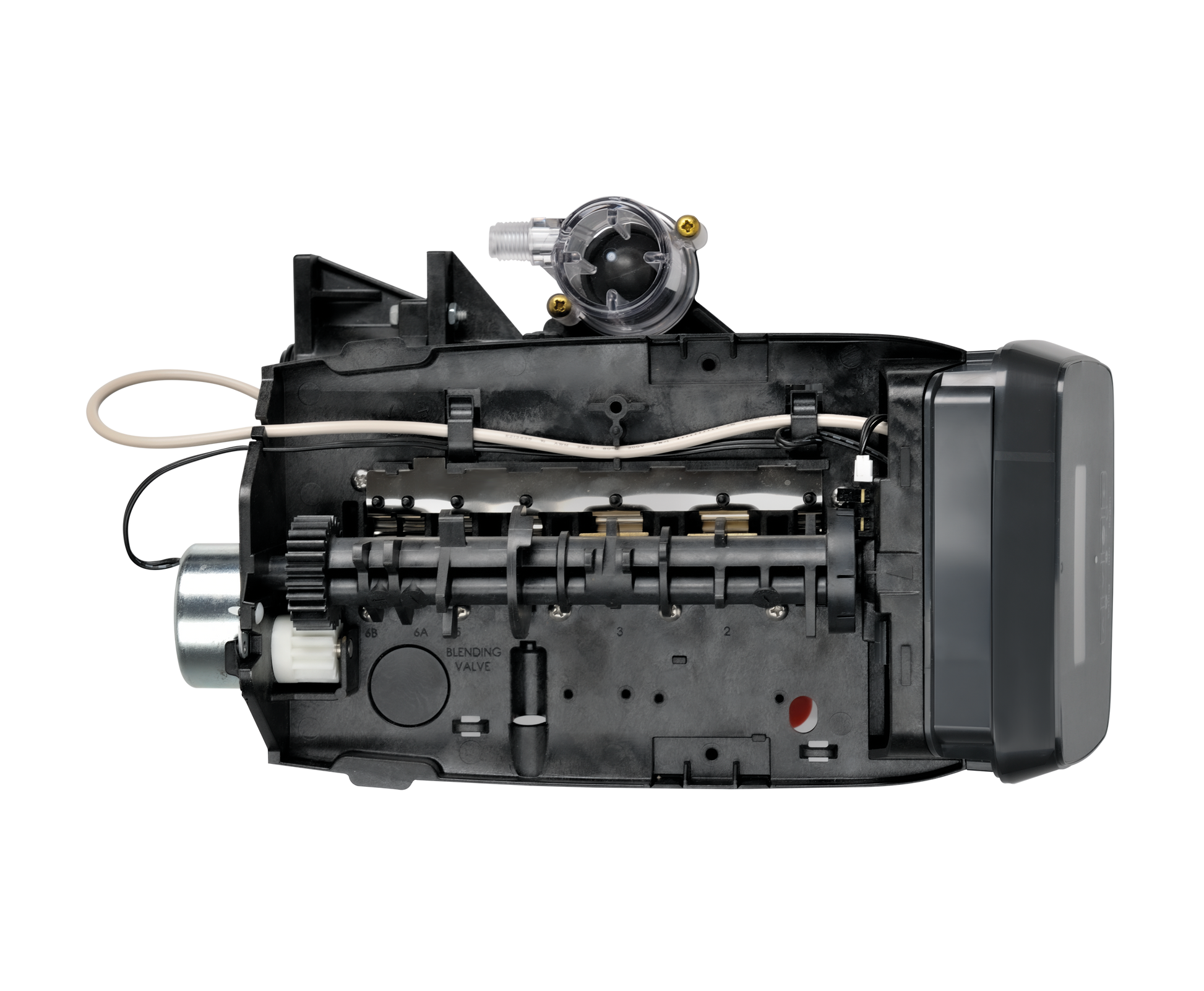

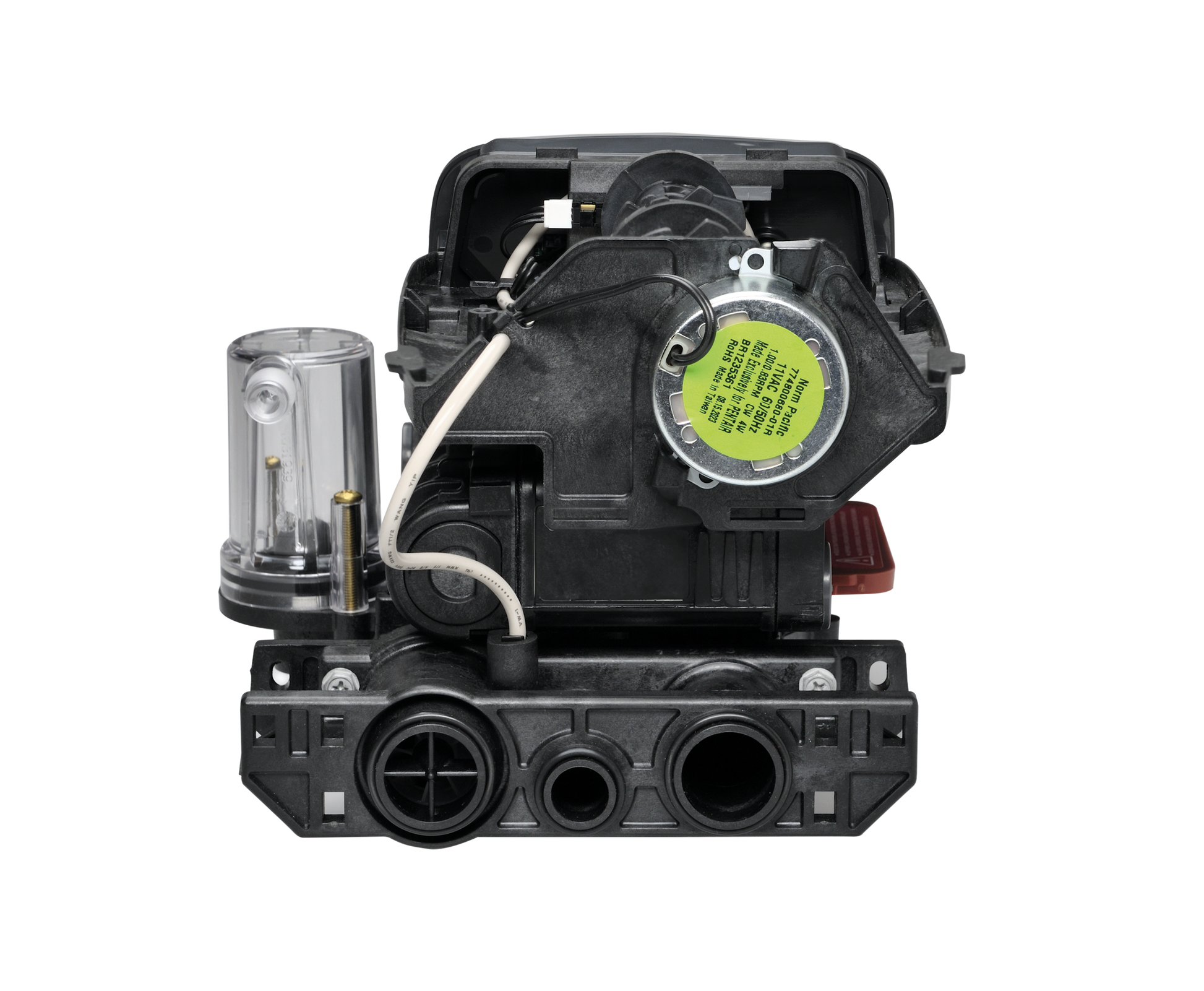

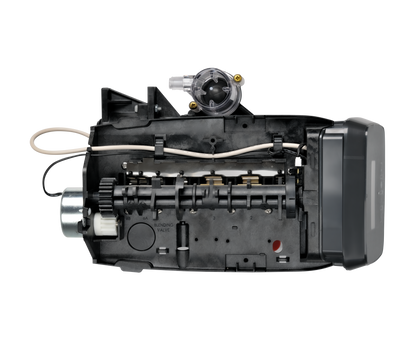

The Autotrol 255 is a non-corrosive, UV-resistant valve with fiber-reinforced polymer valve body for superior strength and durability. Designed with double backwash for reduced hardness leakage, its capabilities accommodate softener tanks up to 14" and filter up to 10" in diameter. Moreover, a time-tested flapper provides a frictionless sealing for longer service life.

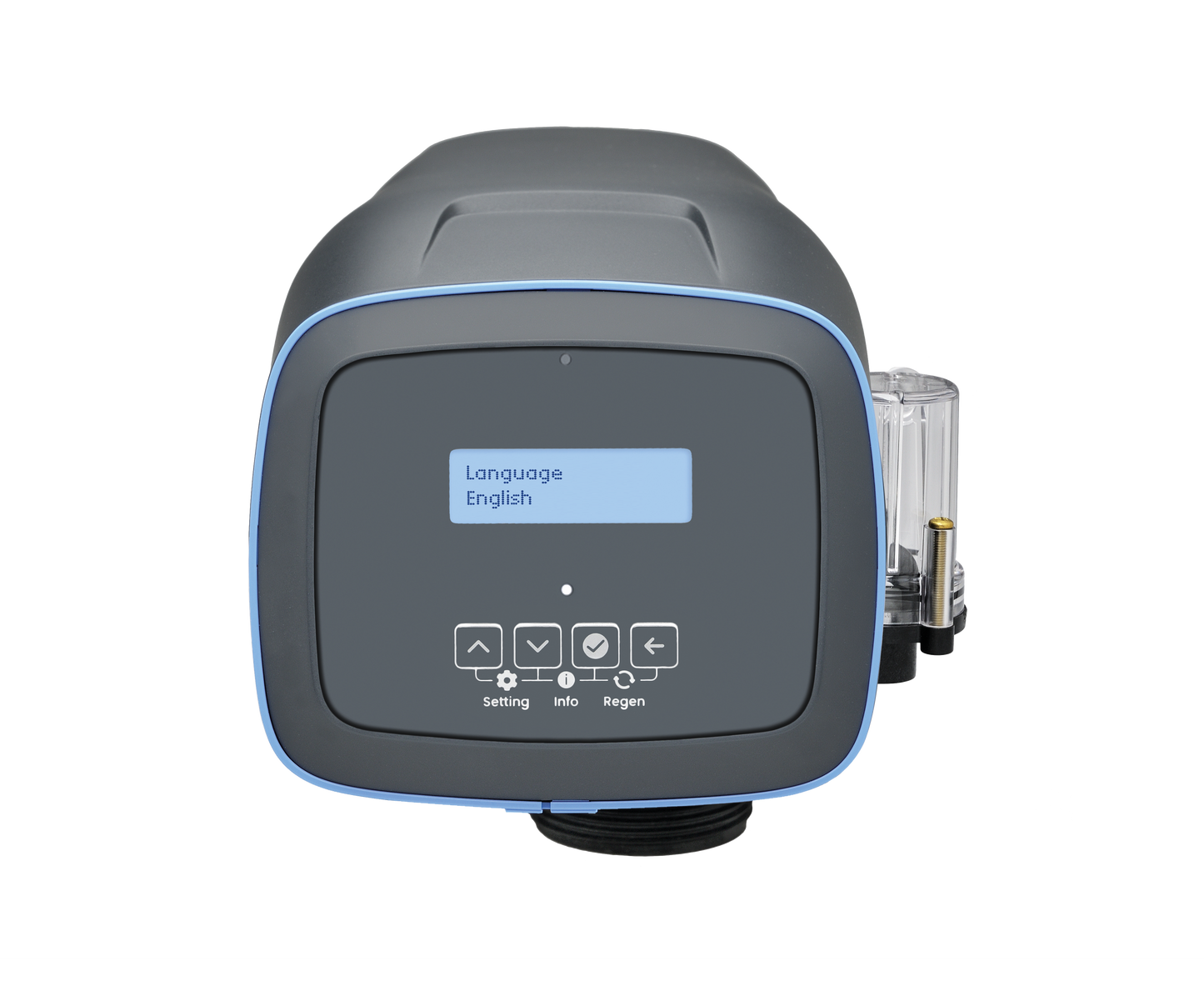

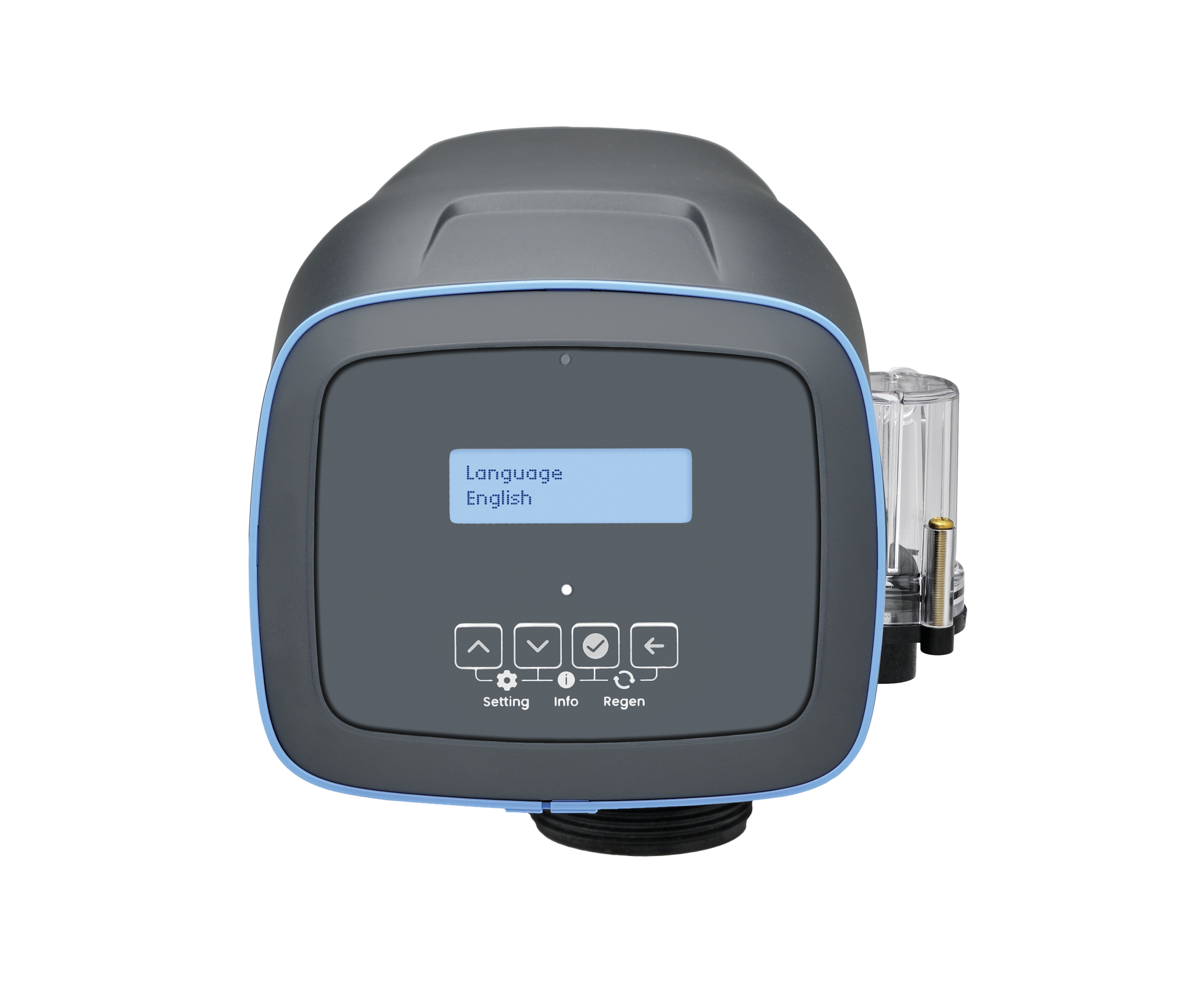

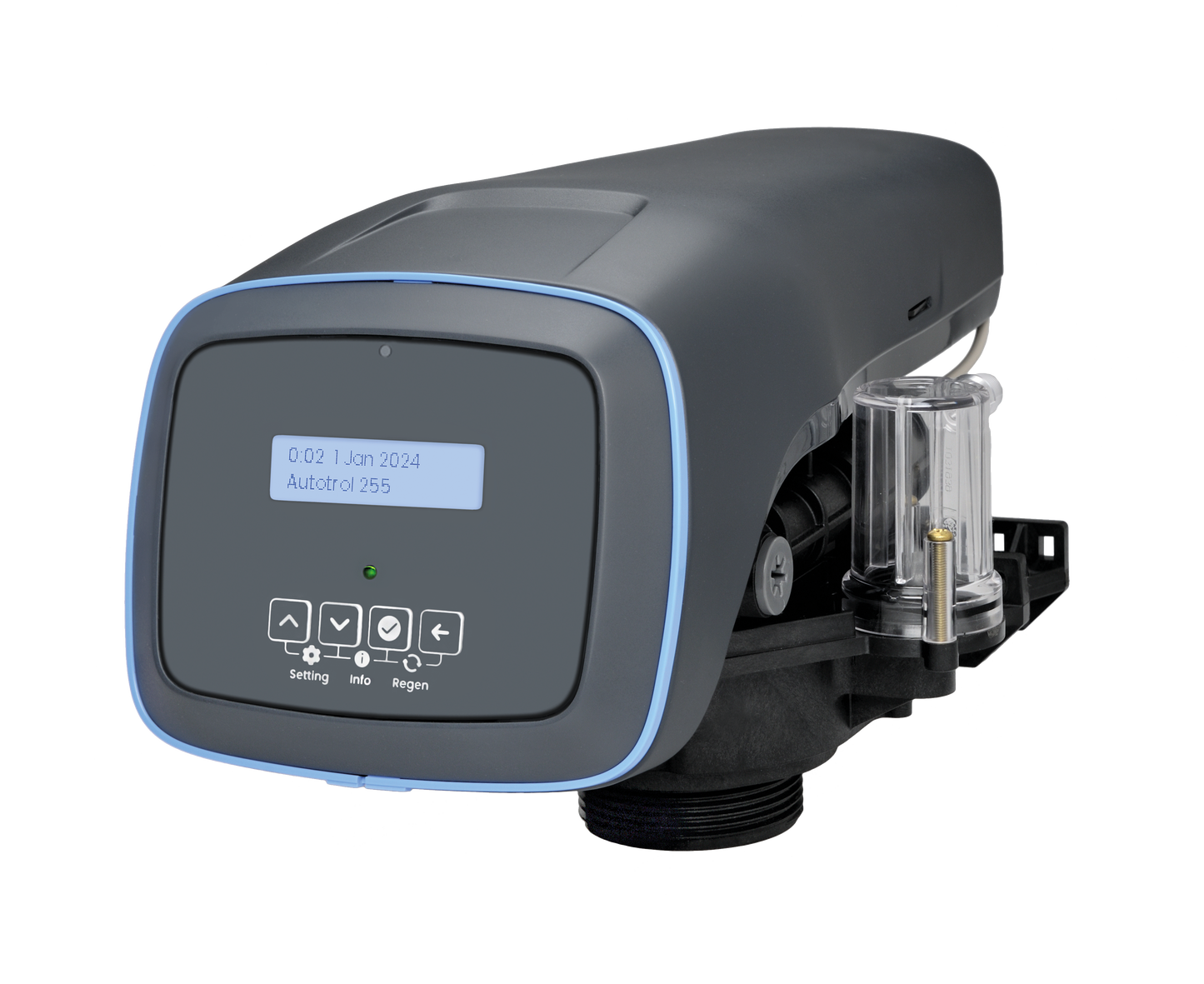

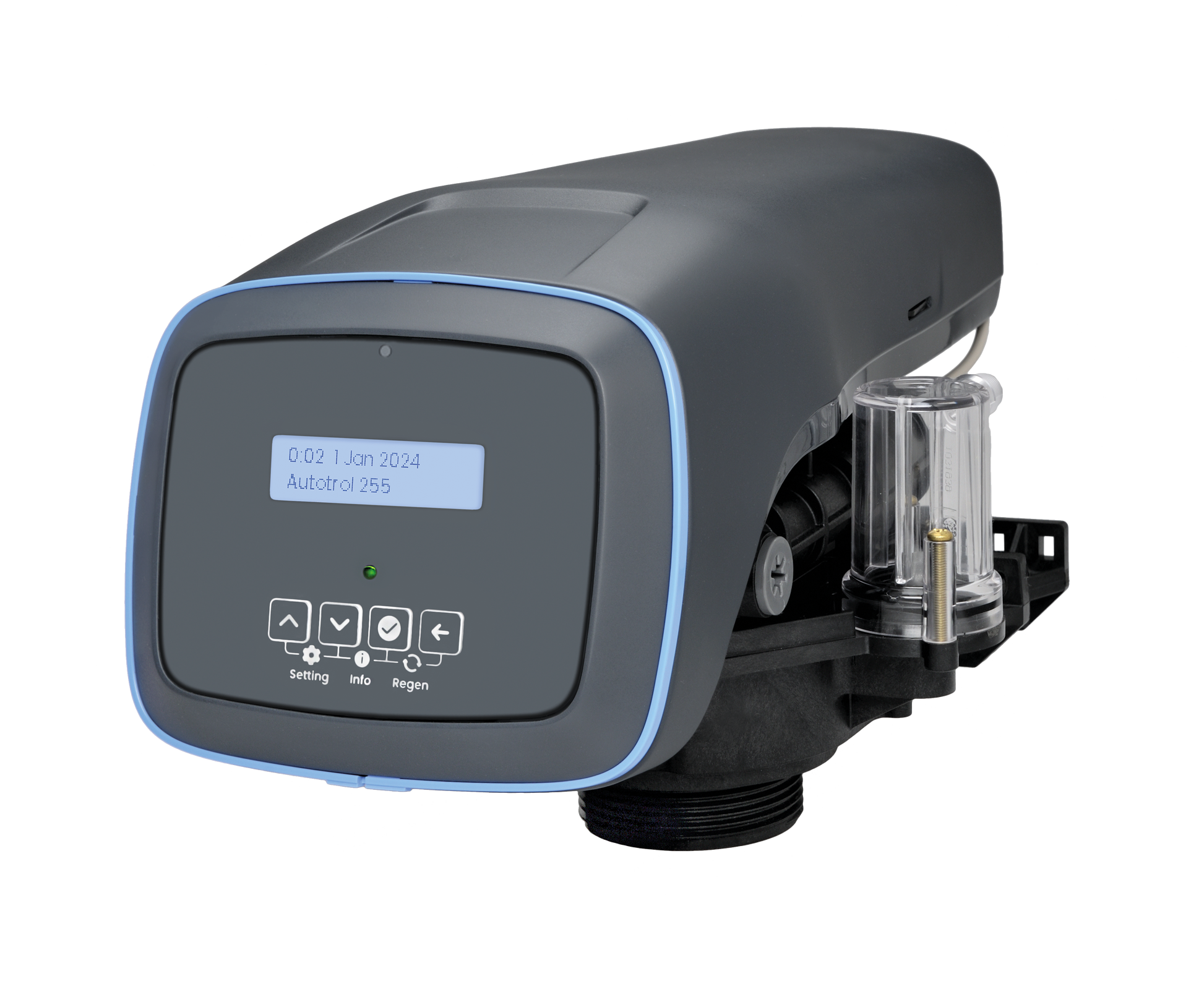

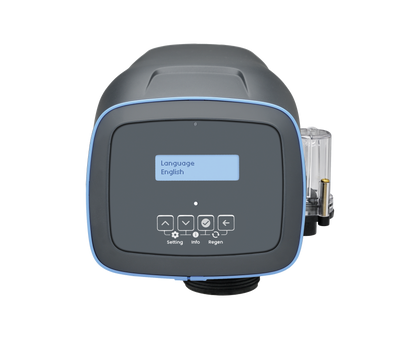

The Autotrol 255 is now fitted with a brand new Autotrol Easy-iQ controller! Standing out for its simplicity, this controller features a customisable multi-lingual colour display and intuitive programming menus dedicated to homeowners, installers and OEMs. It is also equipped with a USB-C port for easy software updates on the field and a particularly useful vacation mode pausing all operation when there’s no one at home.

Technical Specifications

  • Backwash flow (m³/h)
    • 1.4
    Inlet / Outlet (inches)
    • 3/4
    • 1
    Service flow (m³/h)
    • 3.5
    Tank size (inches)
    • 6
    • 10
    • 12
    • 14

    Features & Benefits

    • Corrosion-proof construction

      Longer product life
    • Service flow rate: up to 3,5 m3/h

      Suitable for any residential softening or filter applications
    • Retro illuminated, multilingual graphic display and quick start-up menu

      Fast and simple programming
    • Various programming menus including modules for users, installers and OEMs specifically

      Safe and fast access to the exact set of menus
    • Pre-programmed, modifiable parameters

      Simplified step-by-step programming with customizable parameters (regen cycle times etc…)
    • USB-C port makes programing upload or software updates possible in the field

      The valve is constantly kept at its best performance
    • Dealer contact information display

      Facilitates communication with homeowner
    • New vacation mode

      Prevents bacterial proliferation during no water usage periods
    • Retrofitting capabilities with Logix model with quick-start-up menu and minimal programming needed

      Quick upgrading of existing model base
