Calpeda Meta - Variable speed pressure boosting system with integrated control

Calpeda Meta - Variable speed pressure boosting system with integrated control

Regular price $1,995.00 NZD
Regular price Sale price $1,995.00 NZD
Sale Sold out
Meta Size
Variable speed pressure boosting system with integrated control
Execution

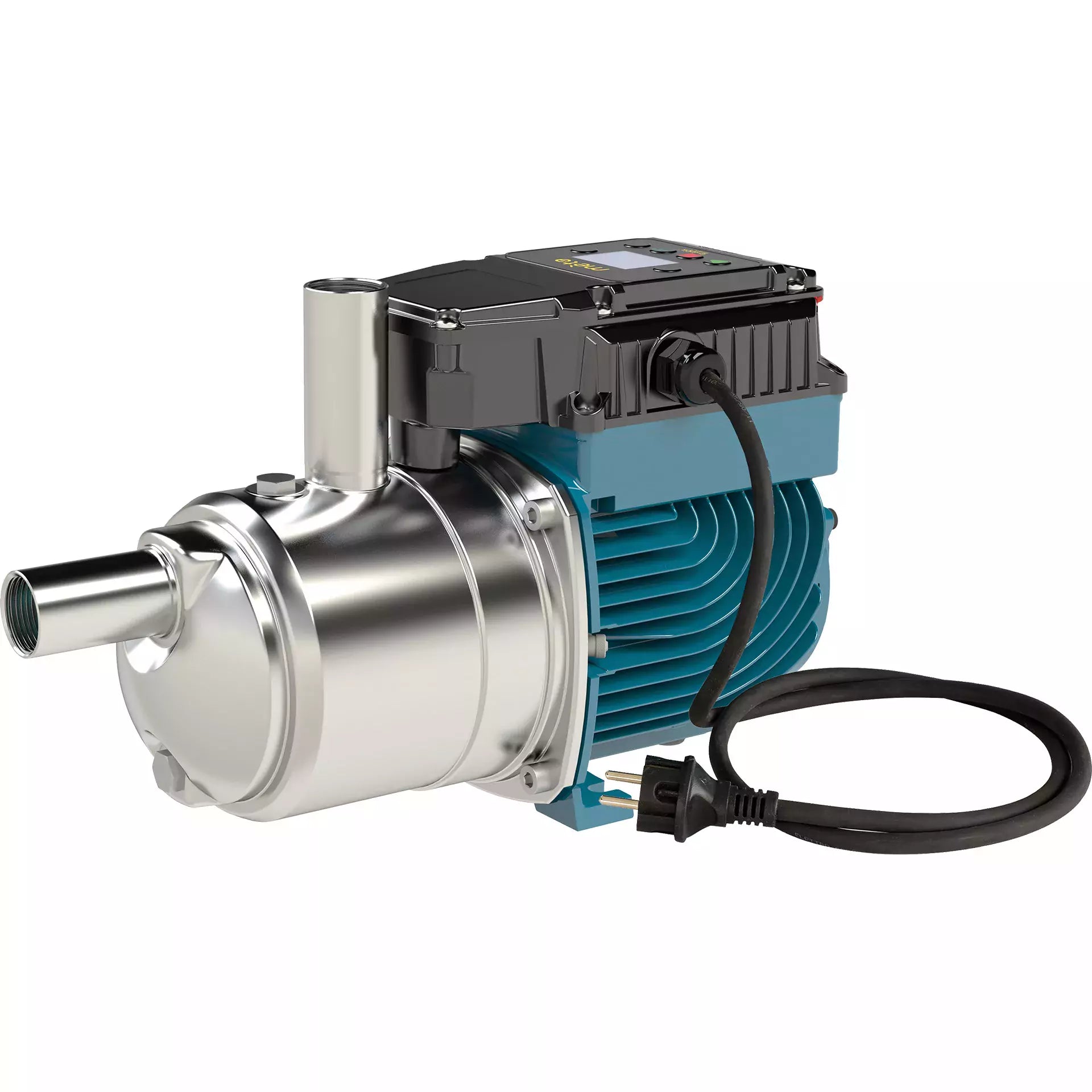

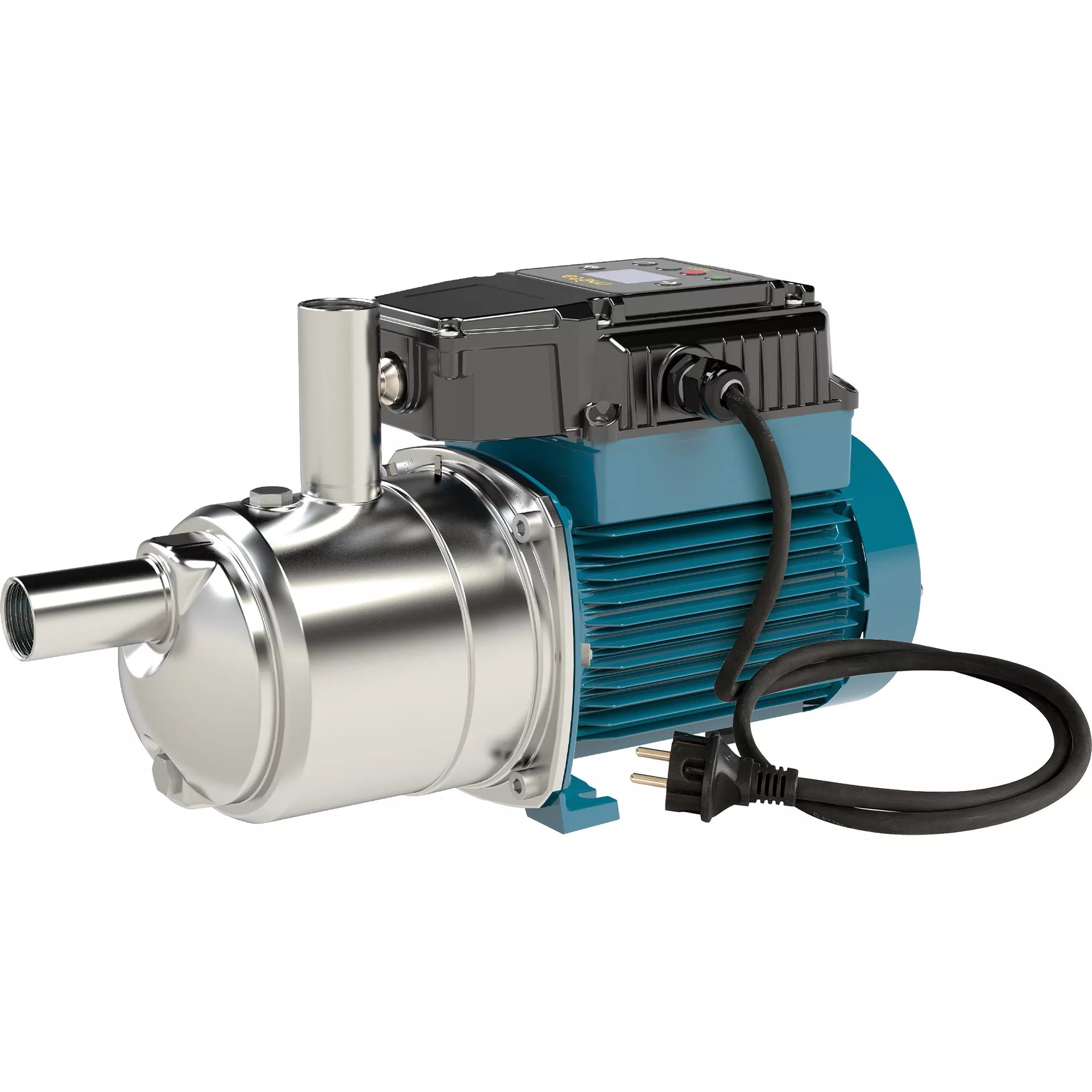

Self-priming booster set with built in frequency converter.
MÈTA is a plug and play solution, the pump is equipped with an integrated pressure transducer, an integrated check valve and a built-in pressure vessel.
The Vsd controls the start and stop of the pump and allows to keep a constant pressure.
Boosting sets with 2 pumps
Suction and delivery manifolds in stainless steel AISI 304.
Connections for the installation of one G 1″ connection pressure vessel.

Applications

For water supply systems.
For domestic use, for garden use and irrigation.


Operating conditions

Liquid temperature: 0 °C to +35 °C.
Ambient temperature up to 40° C.
Maximum permissible pressure in the pump casing: 8 bar.
Continuous duty.
