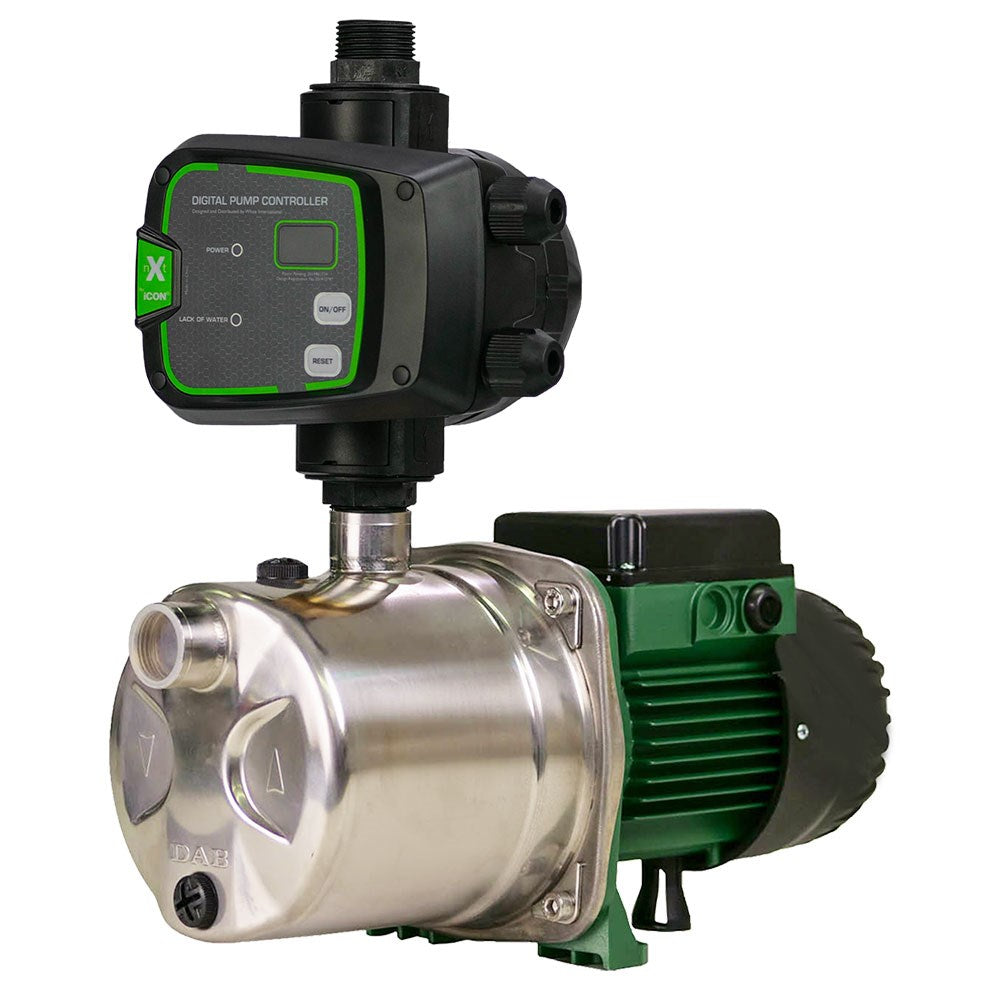

DAB-JINOX102NXT - Stainless Steel Self Priming Pump with nXt Controller 53.8m 0.75kW 240V
DAB-JINOX102NXT - Stainless Steel Self Priming Pump with nXt Controller 53.8m 0.75kW 240V
Couldn't load pickup availability
Technical Specifications
Brand | DAB Pumps |
Product Type | Pressure System |
Bar | 5.3 |
Suitable For | Clean Water |
Approval | Drinking Water Approval |
Amps | 5.1 |
Flow Range Category | a. 0 - 99 L/min |
Flow Rate (L/min) | 60 |
Float | No |
Hp | 1 |
kPa | 530 |
Kilo Watts | 0.75 |
Max Flow (L/min) | 60 |
Head Range Category | b. 40 - 59 m |
Max Head (m) | 53.8 |
Port Size Inlet | 1" BSPF inlet |
Port Size Outlet | 1" BSPM outlet |
Powered | Electric |
Taps | 6 |
Volts | 240 |
Warranty (months) | 24 |
Watts | 750 |
Description
Surface Mounted - Jet Pump
Suitable for water supply applications with suction wells, water supply and boosting of domestic systems, agricultural and gardening applications.
0.75kW, 1hp, 240V, max hd 53.8m, max flow 60L/m, 6 taps Ports 1” BSPF In, 1” BSPM Out
Warranty
2 Year DAB Pumps Warranty
Controller
This pump includes the Bianco iCON nXt series of pump controller.
The nXt Controller is designed and tested in Australia to ensure operation in the toughest of environments, combining innovative technology with robust proven architecture to guarantee constant supply of pressurised water when and where you need it the most.
Controller Features
- Digital display gives you a real time indication of system pressure
- Anti-cycle Protection
- Dry run protection with auto restart function that tests for water availability every 24hrs
- Anti-seize function if pump has not operated for last 24 hours
- Controller automatically restarts pump after a power failure
- Easy assembly and removal using push-n-connect fitting with U clip
- Complies to AS/NZ 4020 drinking water standard
- Over pressure protection turns pump off when 10 bar is reached
- Overload protection
Controller Flow Curve


nXt Controller Data | |
---|---|
Function | ON/OFF |
Modes | 1 |
Size | 1.5Kw |
Rated Voltage | 220-240V AC |
Max Amps | 10 |
Rated Power | 1500w |
Rating | IP65 |
Union Size | 1" |
Start Pressure | 2.2 bar (32PSi) |
Stop Pressure | on no flow |
Max Pressure | 10 bar (145PSI) |
Max Liquid Temp | 40°C |
Cable to Pump | Plug and Play |
Flylead for Pump | When sold as control only |
Power Cable | 10AMP |
Communication | - |
Accessories (Sold Separately) | - |
1 ¼” Union Kit |

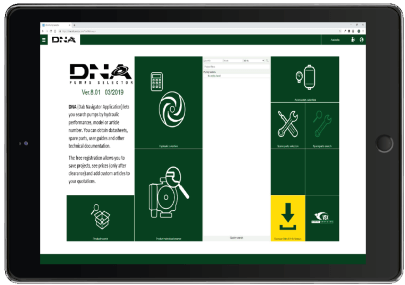

DAB Product Selector

DNA (DAB Navigator Application) lets you search pumps by hydraulic performances, model or article number. You can obtain data sheets, spare parts information, user guides and other technical documentation.
The free registration allows you to save projects and add custom articles to your quotations.
